Φ200Arrow head core module箭头灯芯


Products description
产品描述:

SLZ-CM-AH200 series, arrow head core module of traffic signal light. Only have two configurations, different scheme with different lens options and quantity of Led. Details of each items, please refer to information thereinafter. Besides many typical characters we all known, remarkable SLZ-CM-AH200 series has high-tech material apply to PCB, optimizing electric components. Even the wiring of circle board is much reliable. Although we have two normal configurations but you could select differ items you want, it’s our pleasure to follow your customized design. In stock modules designed to requirements of replacement (spares) for maintenance purpose and OEM factories assembling, satisfied National standard GB/14887-2003 as well. It’s widely used in the world
SLZ-CM-AH200系列的箭头交通信号灯芯,只有2种配置方案,不同的方案有不同的透镜配置以及不同的LED发光体数量。详细的资料请参照以下部分;除了我们大家都熟知的、直径200毫米信号灯特点外,值得注意的是,SLZ-CM-AH200 系列的灯芯,采用了很多高科技的材料与工艺的优化,例如,关键的PCB板材料、关键的元器件、电路板的线路可靠性设计等。尽管我们已经有了常规的2种配置方案,但是,我们也很乐意由客户自己选择所需要的不同配置,也遵循客户的定制设计要求。在售灯芯模组的设计满足作为设施维护企业的常用备件、OEM生产企业的装配用组件要求,并完全符合国标GB/14887-2003以及其它国际标准, 通过了公安部CTSTC检查和国际CE认证;已被市场广泛使用。

Specifications规格:

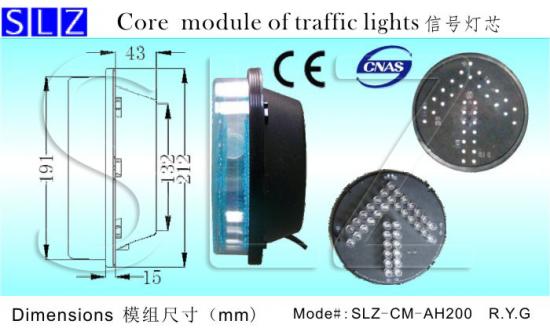

Module Size模组规格(mm):     Φ200
Housing壳料:                                   GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压:               AC85V ~ 265V 60Hz/50Hz
IP level防护等级:                               IP53
Power consumption功耗:               Configured with Fresnel lens:  ≤6W,
                                                             Configured without lens: ≤6W
Working environment环境温度:     -40°C ~ 80°C
Seeable distance可视距离:           ≥300M
Visual angle可视角度:                     30°
QTY of LED数量:                              Configured with Fresnel lens: 38pcs per module
                                                            Configured without lens: 36pcs per module
Luminous intensity (IV)亮度:          Red: 3500~5000mcd; Yellow: 4000~6000mcd; Green: 7000~1000mcd
Dominant wavelength光波长度:    Red: 625+/-5, Yellow: 590+/-5nm; Green: 505 +/-5nm
Certification检验证书:                      CE / CTSTC

Packing information包装数据:
Carton box dimensions包装箱尺寸(m):  1.04 *0.25*0.25 (K=k type)
QTY per each box装箱数量:                       10 modules
Gross weight毛重(kg):                                8.6
Net Weight净重(kg):                                    6.6
Cube单箱体积 (m3):                                   0.12

Order number and configurations订货号与配置:

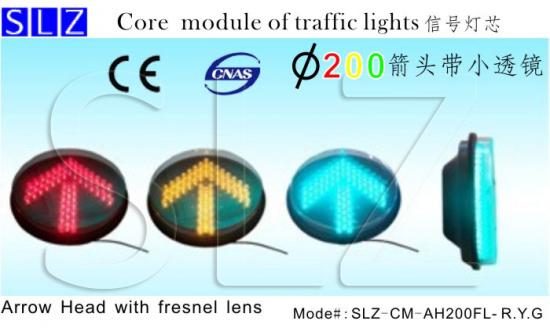

SLZ-CM-AH200FL-R   Φ200mm core module with Fresnel lens, LED emission: RED light红色小透镜信号灯芯
SLZ-CM-AH200FL-Y   Φ200mm core module with Fresnel lens, LED emission: RED light黄色小透镜信号灯芯
SLZ-CM-AH200FL-G  Φ200mm core module with Fresnel lens, LED emission: RED light绿色小透镜信号灯芯
SLZ-CM-AH200-R:         Φ200mm core module without lens LED emission: Red light 红色信号灯芯不带透镜
SLZ-CM-AH200-Y:         Φ200mm core module without lens LED emission: Yellow light黄色信号灯芯不带透镜
SLZ-CM-AH200-G:         Φ200mm core module without lens LED emission: Green light绿色信号灯芯不带透镜
