Products description产品描述:

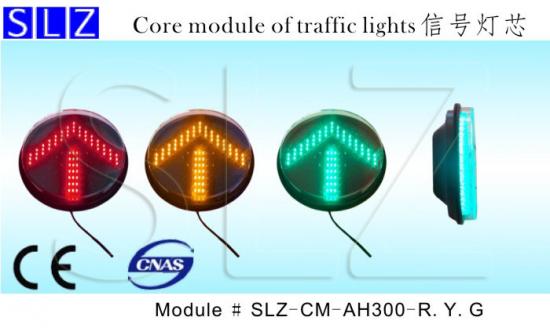

SLZ-CM-AH300-R.Y.G series, Arrow head core module of traffic light, generally only has one configuration, is without lens. Belong to economic style. But you could select differ items you want, it’s our pleasure to follow your customized design. In stock modules designed to requirements of replacement (spares) for maintenance purpose and OEM factories assembling, satisfied National standard GB/14887-2003 as well. It’s widely used in the world
SLZ-CM-AH300-R.Y.G系列的箭头信号灯芯，目前只有一种配置方案，就是不带透镜的配置；不带透镜的配置属于经济型方案。但是，我们很乐意由客户自己选择所需要的不同配置，也遵循客户的定制设计要求。在售灯芯模组的设计满足作为设施维护企业的常用备件、OEM生产企业的装配用组件要求，并完全符合国标GB/14887-2003以及其它国际标准，通过了公安部CTSTC检查和国际CE认证；已被市场广泛使用。Specifications规格:

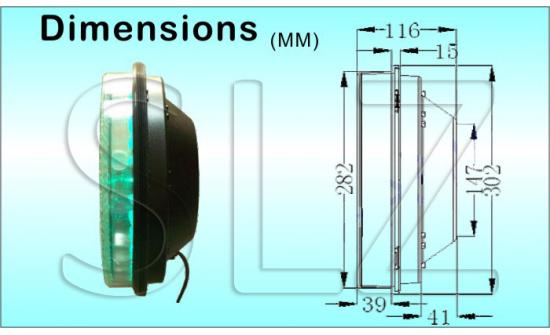

Module Size模组规格（mm）: Φ300
Housing壳料: GE UV-resistance Polycarbonate (PC)抗紫外线工程聚碳酸脂
Working voltage工作电压: AC176V ~ 265V 60Hz/50Hz
IP level防护等级: IP53
Power consumption功耗: ≤9W
Working environment环境温度: -40°C ~ 80°C
Seeable distance可视距离: ≥300M
Visual angle可视角度: 30°
QTY of LED数量: Red &Yellow: 90pcs per module Green:69pcs per module
Luminous intensity (IV)亮度: Red: 3500~5000mcd, Yellow:4000~6000mcd,Green:7000~1000mcd
Dominant wavelength光波长度: Red:625, Yellow: 590, Green: 505 5nm
Certification检验证书: CE / CTSTC Packing information包装数据:
Carton box dimensions包装箱尺寸(m): 1.24 *0.33*0.31 (K=k material)
QTY per each box装箱数量: 10 modules
Gross weight毛重(kg): 17.24
Net Weight净重(kg): 13.6
Cube单箱体积 (m3): 0.125 Order number and configurations订货号与配置:
SLZ-CM-AH300-R：Φ300mm Arrow head signal light without lens, LED emission: RED light红色箭头信号灯无透镜
SLZ-CM-AH300-Y: Φ300mm Arrow head signal light without lens, LED emission: Yellow light黄色箭头信号灯无透镜
SLZ-CM-AH300-G: Φ300mm Arrow head signal light without lens, LED emission: Green light绿色箭头信号灯无透镜
